Accuracy in every direction


Discover the advantages of our product, at a glance!

  • PC-supported method for 3-axis magnetic field imaging
  • Optimized for use in research, development and quality control
  • Fast and precise measurements with our patented line sensor
  • Easy to use with intuitive data acquisition and analysis software and the ability to schedule single and multiple scans
  • Compatible with Windows 10 and 11 devices for easy integration into your workflow

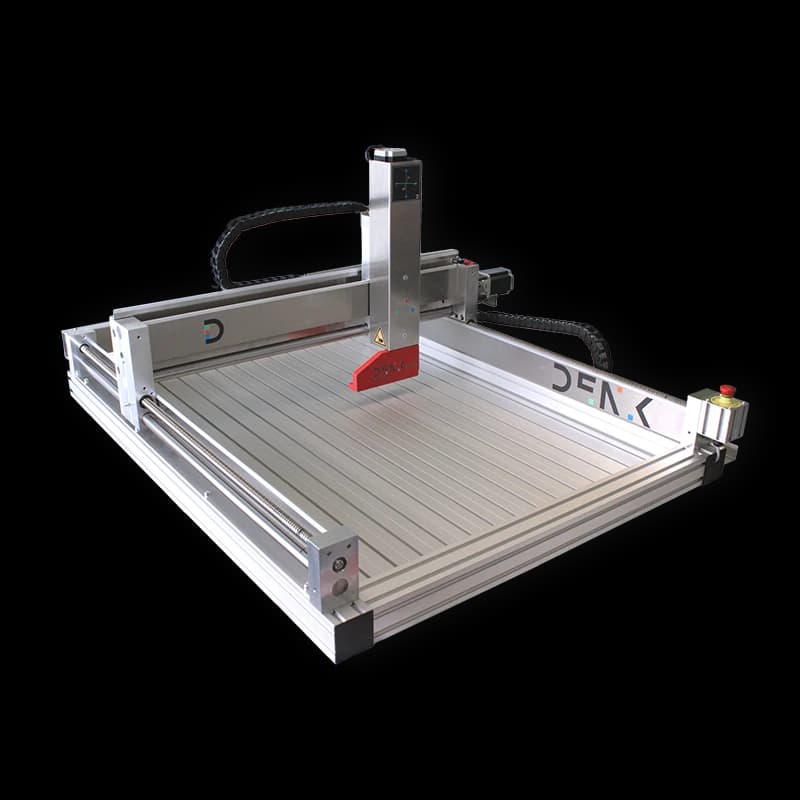

With the B-Lab we present the innovative solution for magnetic field imaging. Due to the B-TECH sensor head and positioning system, highly accurate location-dependent measurements in all three spatial directions are possible. Therefore, the B-Lab is ideal for research, development and quality control. With the software combination of DENKsicht and DENKplot, the measurement data can be easily recorded and evaluated. Thanks to its versatility, the B-Lab can be used for a wide range of applications, such as testing solar cells, batteries and other current-carrying structures, as well as magnetic flux leakage testing. Expand your lab's capabilities with the B-Lab today!

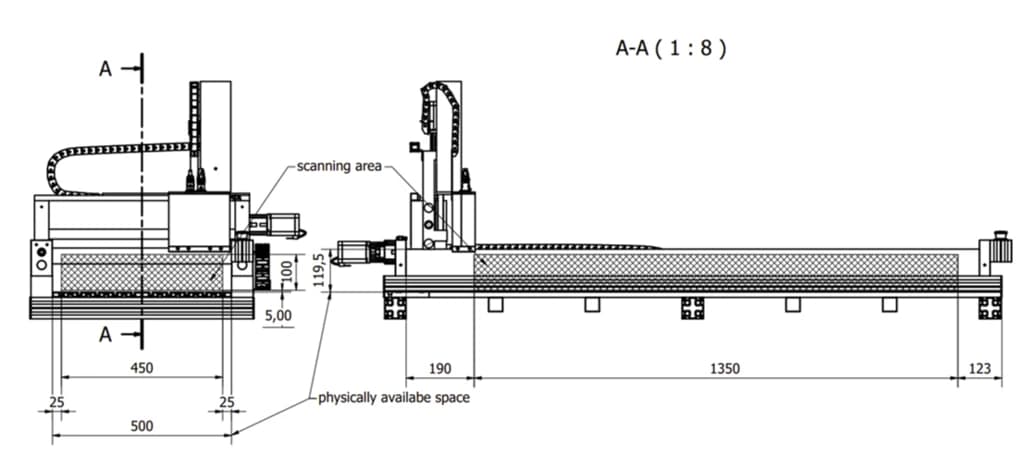

  • Measuring range magnetic flux density B: ±1,3 mT (x, y), ±2,5 mT (z)
  • Resolution: 0,3 µT
  • Sensor width: 160 mm
  • Scan volume: 550 x 800 x 100 mm³ (x, y, z)
  • Scanning speed: 50 - 1600 mm/min
  • Spatial resolution: 2,5 mm (x), >30 µm (y) (normal scan mode)
  • Sampling frequency: approx. 30 Hz
  • Temperature range during operation: 15 °C - 35 °C (non-condensing)
  • Interface to PC: USB
  • Power supply: 110 - 230 V AC, 2 A - 4 A, 50/60 Hz
  • Dimension xyz-table: 1260 x 1000 x 660 mm
  • Weight xyz-table: 65 kg
  • Dimensions control unit: 410 x 270 x 155 mm
  • Weight control unit: 10 kg


Cross and Cell Connector

Cross and Cell Connector

Eliminate uncertainty in broken cross and cell connector detection with our cutting-edge B-TECH technology. Quickly identify the root cause of lower efficiencies and higher series resistances in solar modules. Whether in production, in the field or in the laboratory, our product portfolio offers the perfect solution for all your needs.
